Dynamic Dome Unit Skylights: Sizes, Cost, Specs & Installation

A Complete Guide to VELUX Dynamic Dome Skylights

Daylighting plays a critical role in commercial building design, impacting everything from energy performance to occupant comfort. But achieving consistent, high-quality daylight in large spaces is not always straightforward.

VELUX Dynamic Dome unit skylights are engineered to address these challenges head-on. With a design that captures more low-angle sunlight, they deliver increased usable daylight throughout the day. This guide addresses the most common questions around performance, applications, and installation to make designing and specifying easier on your next project.

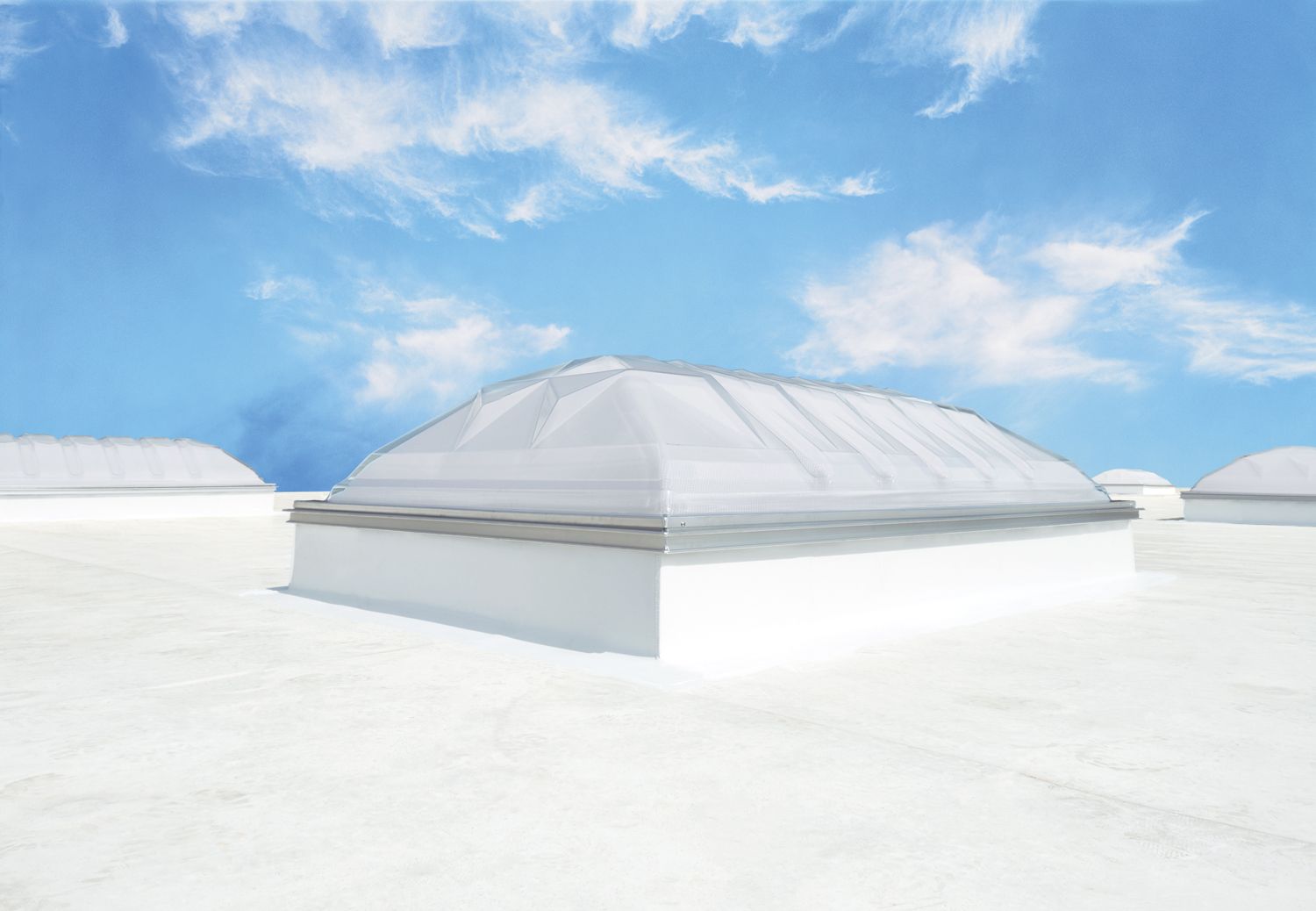

What is a Dynamic Dome Unit Skylight?

The VELUX Dynamic Dome skylight is a high-performance unit skylight designed to maximize daylight in commercial and industrial spaces. Its engineered prismatic outer dome captures more low-angle sunlight throughout the day and helps transmit increased usable daylight into the building while supporting energy efficiency and occupant comfort. It also has steeper side walls, which provide greater light transmittance than lower-profile domes.

Dynamic Dome vs. Traditional Dome Skylights: What’s the Difference?

The key difference between Dynamic Dome skylights and traditional dome skylights lies in how daylight is captured and distributed throughout the day. Dynamic dome skylights are designed to capture more low-angle sunlight, helping deliver consistent daylight from morning through late afternoon. Traditional dome skylights, on the other hand, use a lower-profile design that provides overhead daylight with reduced performance during early and late hours.

Both options can be effective depending on the project, with the choice often driven by daylighting goals, building type, and performance requirements.

How much light does a VELUX Dynamic Dome produce?

Engineered to harvest more early-morning and late-afternoon daylight, the VELUX Dynamic Dome produces up to 20% more light than its competitors. This allows a building’s lights to remain off for nearly an extra hour per day.

How does it improve energy efficiency?

By maximizing low-angle sun performance, buildings can replace artificial light with natural light sooner and see significant long-term energy savings.

Do Dynamic Dome skylights meet energy codes and IECC requirements?

Dynamic Dome skylights are designed to meet energy code requirements when specified with the appropriate glazing configuration, with compliance documented in the ICC-ES Report.

These skylights are thermally certified through NFRC, providing verified performance data such as U-factor and Solar Heat Gain Coefficient (SHGC). To ensure full compliance, it’s important to select the correct glazing option based on your project’s climate zone and local code requirements.

Related: View Dynamic Dome performance data and certifications

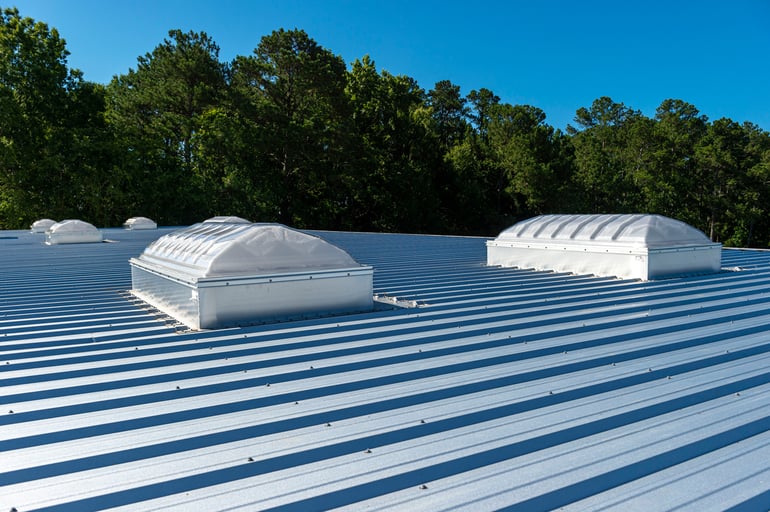

Which applications are best suited for Dynamic Domes?

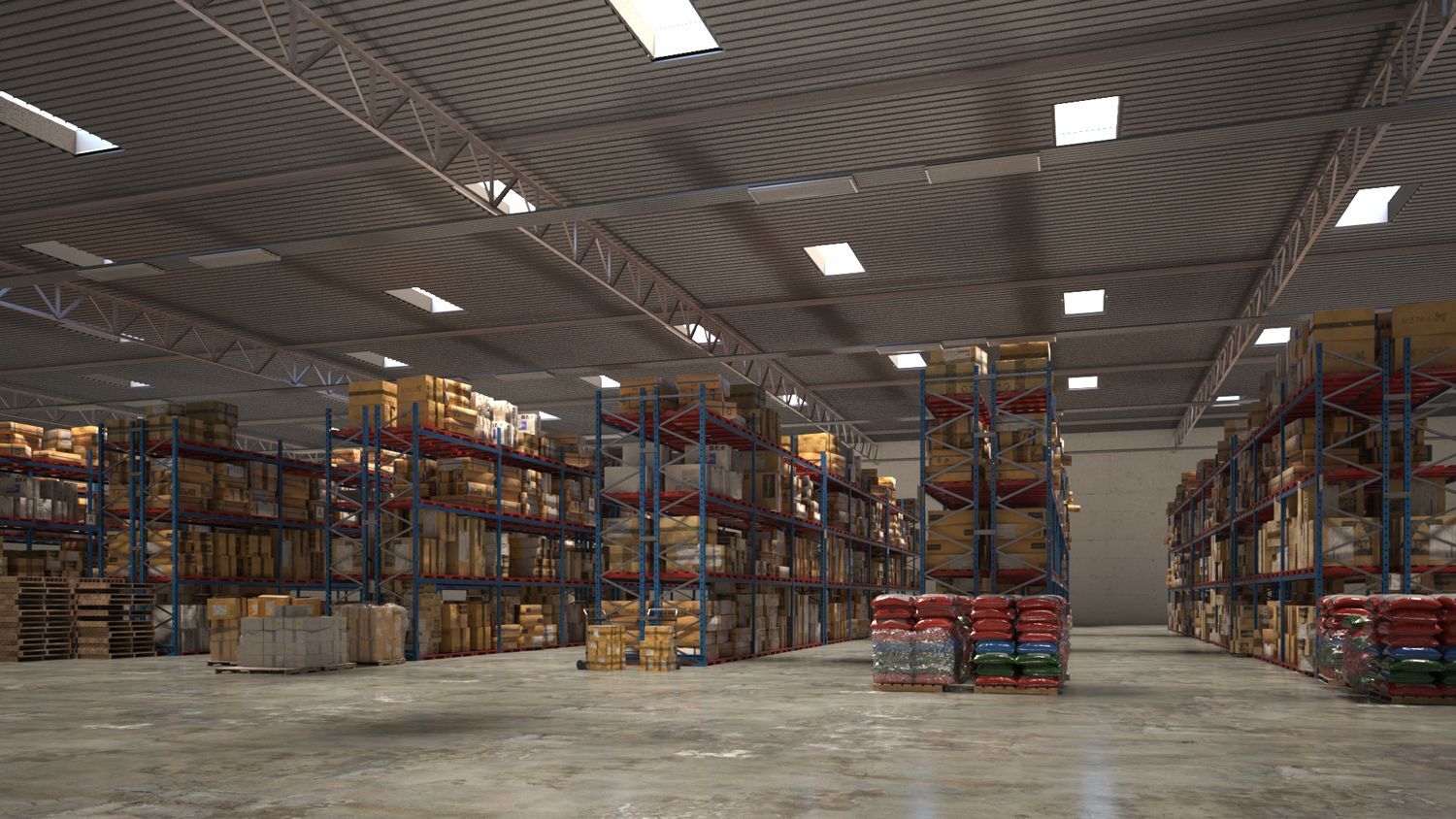

Dynamic Dome Units are ideal for large-scale commercial and industrial environments, including:

• Manufacturing centers
• Warehouse and distribution centers
• Airport and railroad stations
• Sport facilities

These environments benefit most from consistent, high-quality daylight across wide interior spaces. To see how our unit dome skylights perform in real-world projects, check out our case studies.

What sizes are available for VELUX Dynamic Dome skylights?

VELUX Dynamic Dome skylights are available in 21 standard sizes, making them ideal for both new construction and retrofit applications. Sizes range from 24" to 72" in width, with lengths available from 36" up to 120".

What glazing options are available for the Dynamic Dome?

Dynamic Dome skylights are available in multiple glazing materials designed to balance impact resistance, light transmission, and long-term durability. Options include:

• LuxGuard® polycarbonate
• LuxGuard® Plus
• 100% impact-modified acrylic (IMA)
• Acrylic

Each system can be configured with different outer and inner dome finishes—such as clear smooth for maximum daylight, or white prismatic for diffused light and glare control. This allows you to fine-tune performance based on your design needs and application. Available glazing options will depend on whether you choose a single, double, or triple dome.

How does the Dynamic Dome protect against condensation?

Dynamic Dome skylights are engineered with a built-in wicking system that absorbs moisture from the inner frame and evacuates it to the exterior.

Does VELUX Dynamic Dome offer a yellowing warranty?

Yes, VELUX offers an industry-leading warranty against yellowing in unit skylights. The warranty is based on the Yellowness Index and includes thresholds for both 5 and 10 years from installation.

Can these unit skylights be equipped with fall protection?

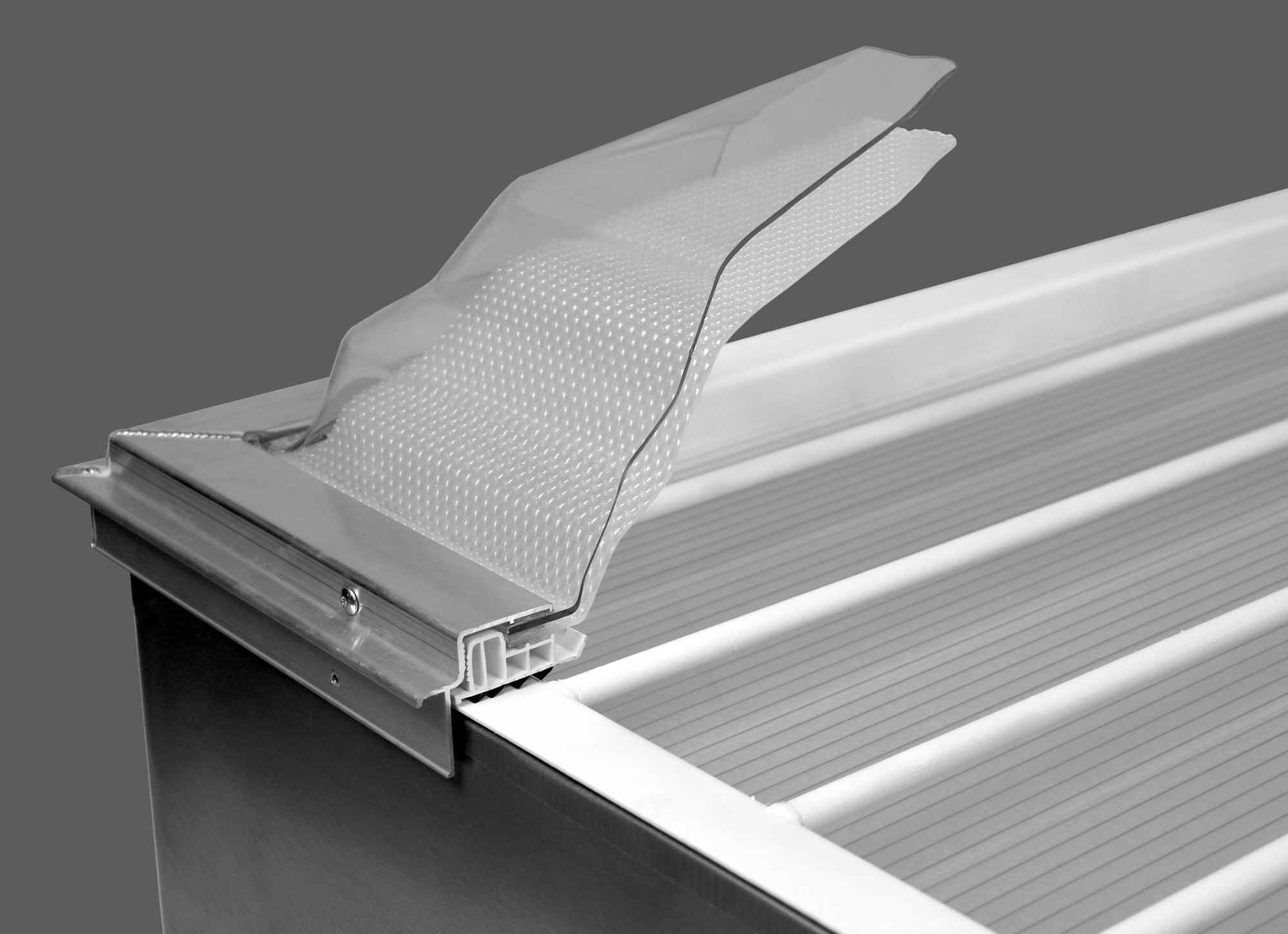

At VELUX Commercial, protecting skylight openings is a top priority. Dynamic Dome skylights can be equipped with compatible fall protection solutions, both during construction and long after construction is complete. Options include interior and exterior safety screens and interior security bars. Exterior safety screens provide OSHA fall protection, improving on-site safety and supporting compliance with project requirements.

Learn More: View Fall Protection Testing Documentation

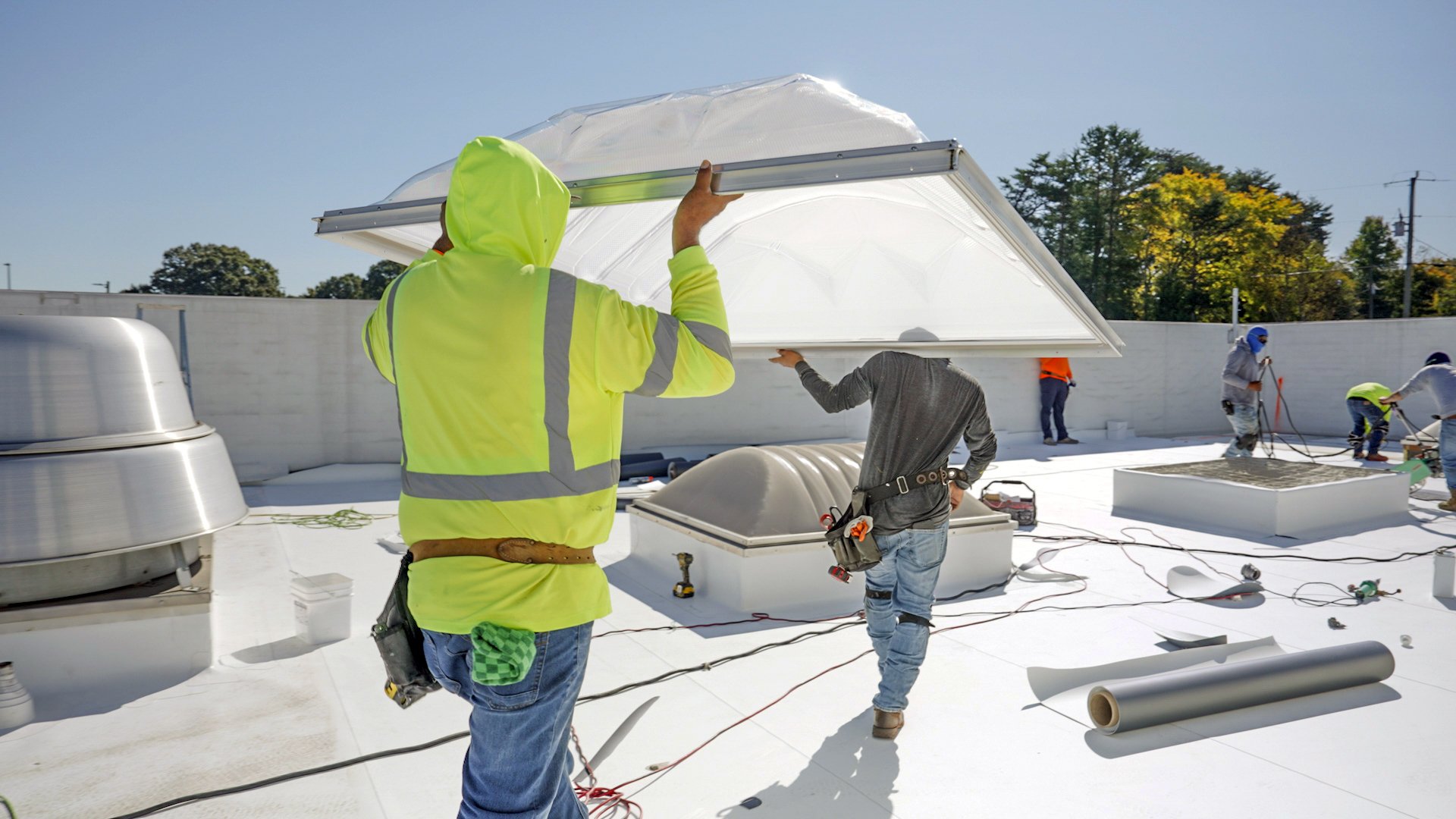

How are Dynamic Dome skylights installed?

Installation is straightforward and designed for efficiency on the roof. Dynamic Dome skylights feature a dry installation process, with no caulk or curb tape required, helping speed up installation. They are also designed with a frame ledge that simplifies positioning and protects fasteners.

How much do Dynamic Dome skylights cost?

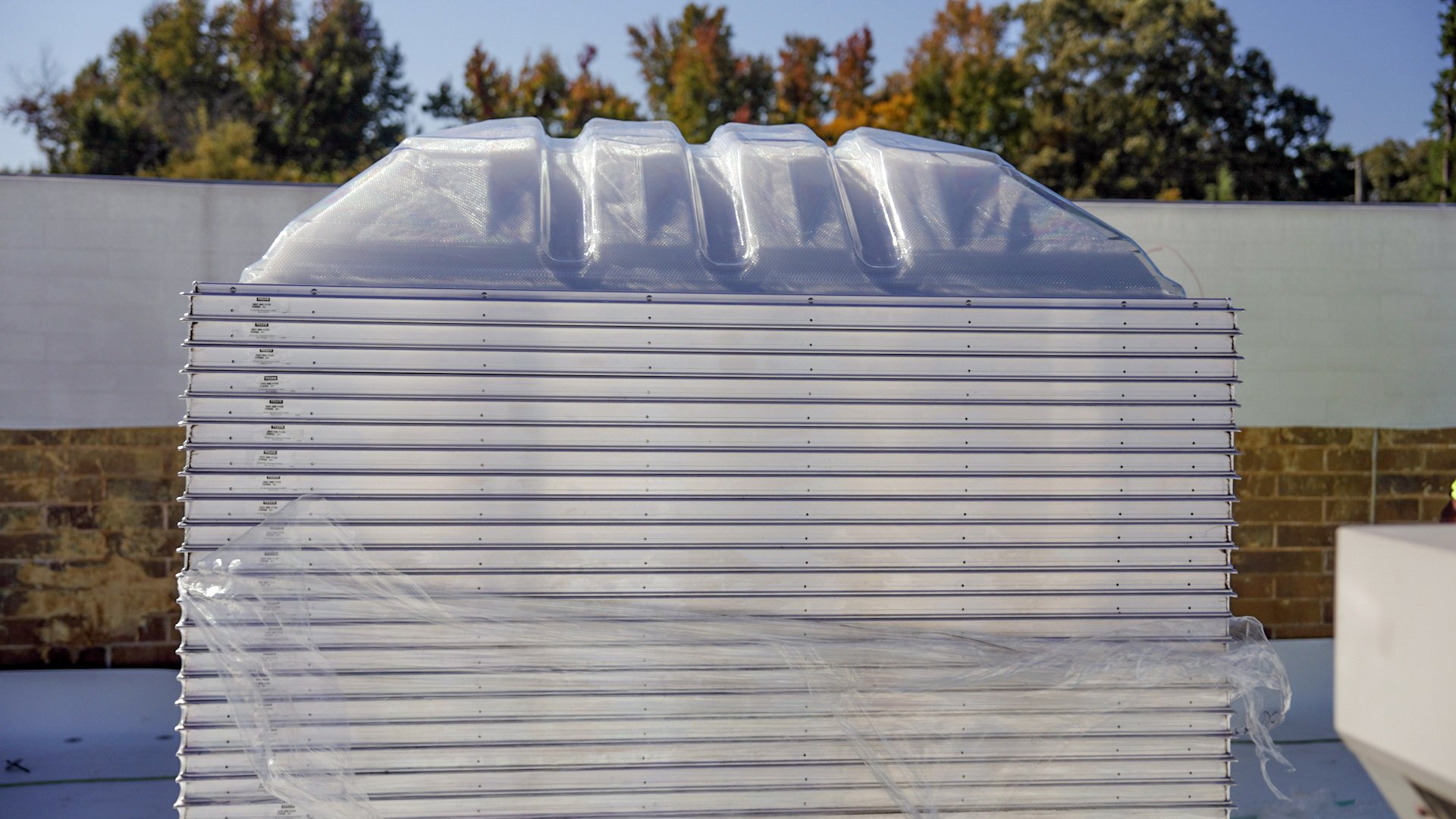

Dynamic Dome skylight pricing varies based on size, glazing configuration, and project requirements. Larger units, impact-resistant glazing, and fall protection accessories can increase overall costs. The nested dome design enhances shipping and handling efficiency by fitting more units on each pallet. This effective packaging method can lower shipping expenses and simplify ordering and transporting larger quantities. For accurate pricing, it’s best to request a project-specific quote.

Where to buy VELUX Dynamic Dome skylights near me?

If you’re evaluating Dynamic Dome skylights for your project, we can help you confirm the right specs and get a quote. Simply contact us directly, or use this directory to find a VELUX Commercial Agency near you.

Bring More Natural Light Into Your Commercial Projects

If you have additional questions about Dynamic Dome Unit Skylights or any other VELUX Commercial skylights in our product portfolio, contact our team. We can support you with design, planning, and installation guidance to ensure the best solution for your project needs.
